Cards - MoEngage

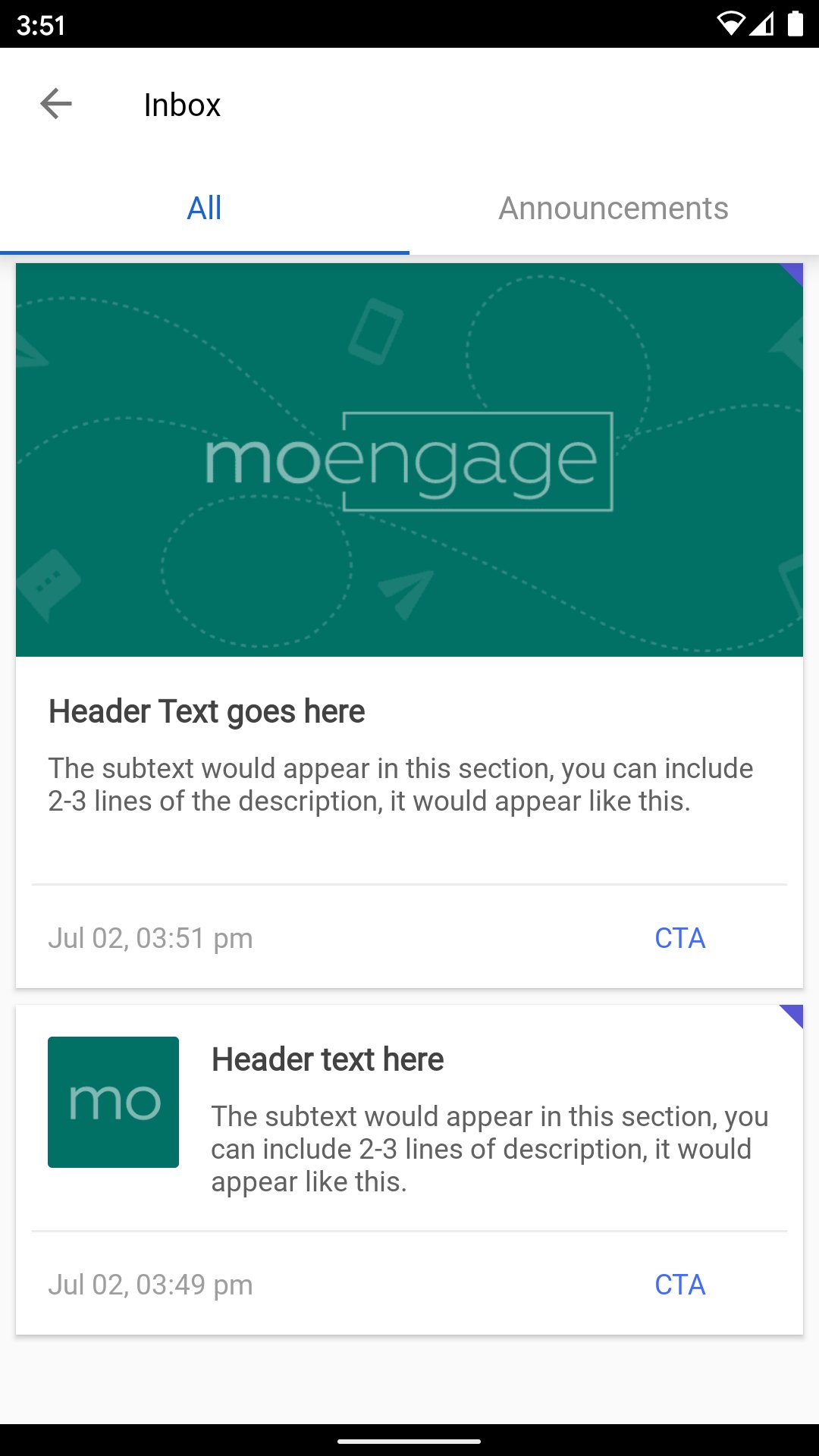

Cards can be used to create targeted or automated App Inbox/NewsFeed messages that can be grouped into various categories and target users with different updates/offers that can stay in the Inbox/Feed over a designated period. For more information, refer to Cards.

SDK Installation

Pass the Cards config in the SDK initialization script as shown below:

Moengage = moe({
    appId: moeAppID,
    env: 'LIVE',
  	logLevel: 0,
    cards: {
      enable: true,
      placeholder: '#cardIcon' // CSS selector of inbox icon
    }
  });

placeholder is the icon on click of which the inbox will open. Make sure it is provided by you and it exist in the DOM.

UI Customizations

SDK provides a set of UI customizations that can overwrite the default values. Refer to the code snippet below for the UI customizations.

Moengage = moe({
    appId: moeAppID,
    env: 'LIVE',
  	logLevel: 0,
    cards: {
      enable: true,
      placeholder: "#cardIcon", // CSS selector of inbox icon
      backgroundColor: "#F6FBFC", // any valid CSS color format
      overLayColor: "rgba(0, 0, 0, 0.8)",
      fontFaces: [{
        family: "Sofia",
        url: "https://fonts.gstatic.com/s/sofia/v14/8QIHdirahM3j_su5uI0Orbjl.woff2"
      }, {
        family: "Audiowide",
        url: "https://fonts.gstatic.com/s/audiowide/v16/l7gdbjpo0cum0ckerWCdlg_OMRlABg.woff2"
      }],
      cardDismiss: {
        color: "#db2828", // any valid CSS color format
        enable: false // boolean value, which enable the dismiss option.
      },
      optionButtonColor: "#C4C4C4", // any valid CSS color format
      dateTimeColor: "#8E8E8E", // any valid CSS color format
      unclickedCardIndicatorColor: "blue", // any valid CSS color format
      pinIcon: "https://app-cdn.moengage.com/sdk/pin-icon.svg", // absolute path to the icon image.
      refreshIcon: "https://app-cdn.moengage.com/sdk/refresh-icon.svg", // absolute path to the icon image.
      navigationBar: {
        backgroundColor: "#00237C", // any valid CSS color format
        text: "Notifications", // string. eg, Notifications
        color: "#fff", // any valid CSS color format
        fontSize: "16px", // any valid CSS size format
        fontFamily: "", // any font family which is added to the website
      },
      closeButton: {
        webIcon: "https://app-cdn.moengage.com/sdk/cross-icon.svg",
        mWebIcon: "https://app-cdn.moengage.com/sdk/cross-icon.svg",
      },
      tab: {
        active: {
          color: "#06A6B7",
          underlineColor: "#06A6B7",
          backgroundColor: "transparent"
        },
        inactiveTabFontColor: "#7C7C7C",
        fontSize: "14px", // any valid CSS size format
        fontFamily: "", // any font family which is added to the website
        backgroundColor: "#fff", // any valid CSS color format
      },
      webFloating: {
        enable: false, // false by default
        icon: "https://app-cdn.moengage.com/sdk/bell-icon.svg", // absolute path to the icon image. by default, our icon will be used.
        postion: "0px 10px 40px 0", // need all 4 offset in proper CSS format in the order of top, right, bottom, left.
        countBackgroundColor: "#FF5A5F",
        countColor: "#fff",
        iconBackgroundColor: "#D9DFED",
        fontFamily: "Audiowide"
      },
      mWebFloating: {
        enable: false, // false by default
        icon: "https://app-cdn.moengage.com/sdk/bell-icon.svg", // absolute path to the icon image. by default, our icon will be used.
        postion: "0px 10px 40px 0", // need all 4 offset in proper CSS format in the order of top, right, bottom, left.
        countBackgroundColor: "#FF5A5F",
        countColor: "#fff",
        iconBackgroundColor: "#D9DFED",
        fontFamily: "Audiowide"
      },
      card: {
        headerFontSize: "16px",
        descriptionFontSize: "14px",
        ctaFontSize: "12px",
        fontFamily: "inherit",
        horizontalRowColor: "#D9DFED"
      },
      noDataContent: {
        img: "https://app-cdn.moengage.com/sdk/cards-no-result.svg",
        text: "No notifications to show, check again later.",
      }
    }
  });

APIs

Unclicked Count

The SDK provides an API to fetch the number of cards that haven’t been clicked by the users. To get the count, use the following API.

<script type="text/javascript">
    Moengage.cards.getUnClickedCardCount().then(unclickedCardCount => {
    	console.log(unclickedCardCount); // unclickedCardCount is in Number format
    })
</script>

New Card Count

The SDK provides an API to get the new cards for the user on the device. To get the count, use the following API.

<script type="text/javascript">
    Moengage.cards.getNewCardCount().then(newCardCount => {
    	console.log(newCardCount); // newCardCount is in Number format
    })
</script>

Callbacks

The SDK provides the following callbacks:

Inbox Open Callback

To get a callback when the user clicks on the inbox icon and when the inbox is open, register the callback function to the setInboxOpenListener() method as shown below.

<script type="text/javascript">
    Moengage.cards.setInboxOpenListener(function(){
    	console.log('Inbox is opened.')
    })
</script>

Inbox Close Callback

To get a callback when the user closes the inbox, register the callback function to the setInboxCloseListener() method as shown below.

<script type="text/javascript">
    Moengage.cards.setInboxCloseListener(function(){
    	console.log('Inbox is closed.')
    })
</script>

Card Click Callback

To get a callback when the user clicks on a card, register the callback function to setCardClickListener() method:

<script type="text/javascript">
    Moengage.cards.setCardClickListener(function(cardId){
    	console.log('Card clicked: ', cardId)
    })
</script>
