Introduction

telSpiel offers enterprise communication services including SMS, WhatsApp Business Messaging, RCS, Voice & Email. With the MoEngage and telSpiel SMS Integration, you can communicate with your end users for the following:

Bulk SMS communication of different categories – Promotional, Service Implicit, and Service explicit.
Real-Time Delivery updates

In addition, you can also automate sales and marketing engagements by sending personalized texts through a secure SMS Platform.

Integration

Prerequisites

You must have an SMS account with the respective SMS Push API details from telSpiel.
You must have DLT-approved details, i.e., templates, if the region of your account is in India.

To configure telSpiel as a Custom SMS Connector, perform the following steps:

On the MoEngage dashboard, navigate to Settings > Channel > SMS.

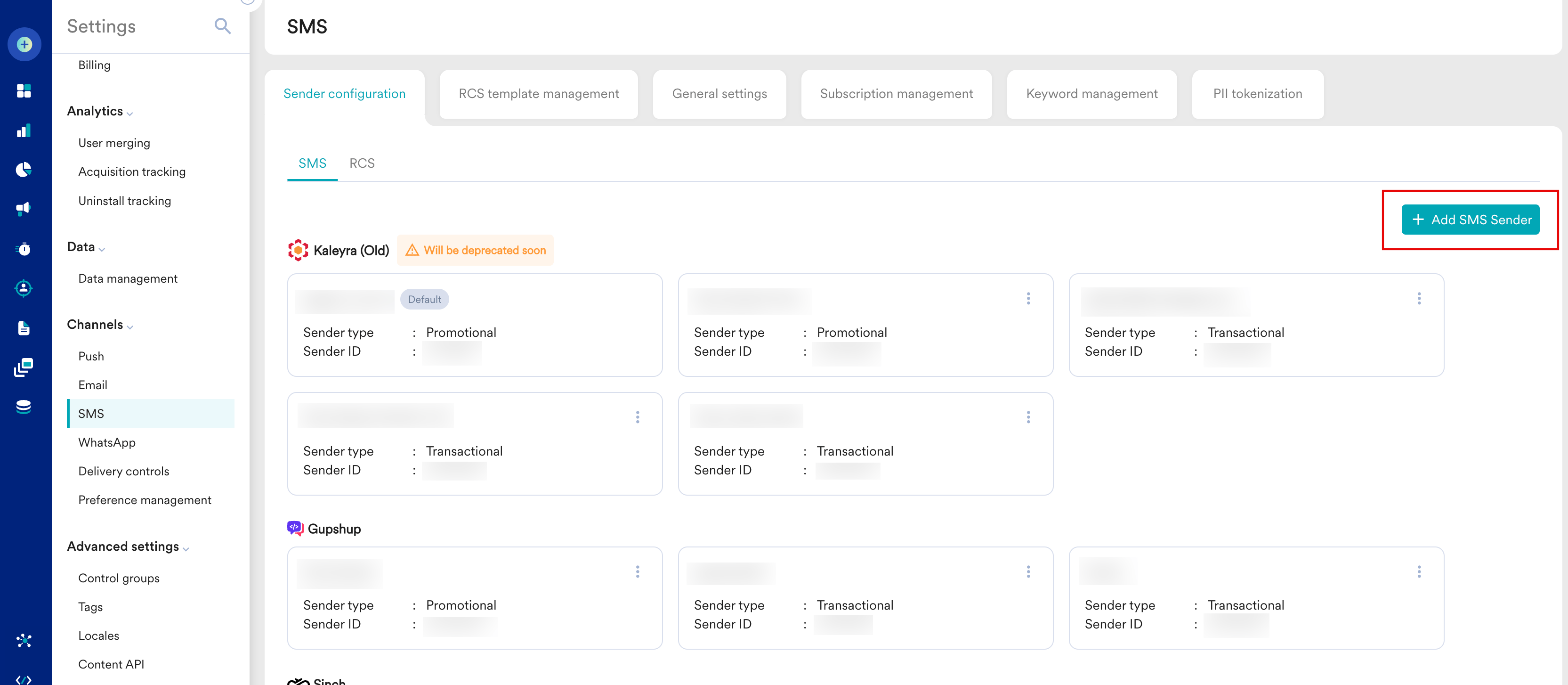

On the SMS tab, click Add SMS Sender.

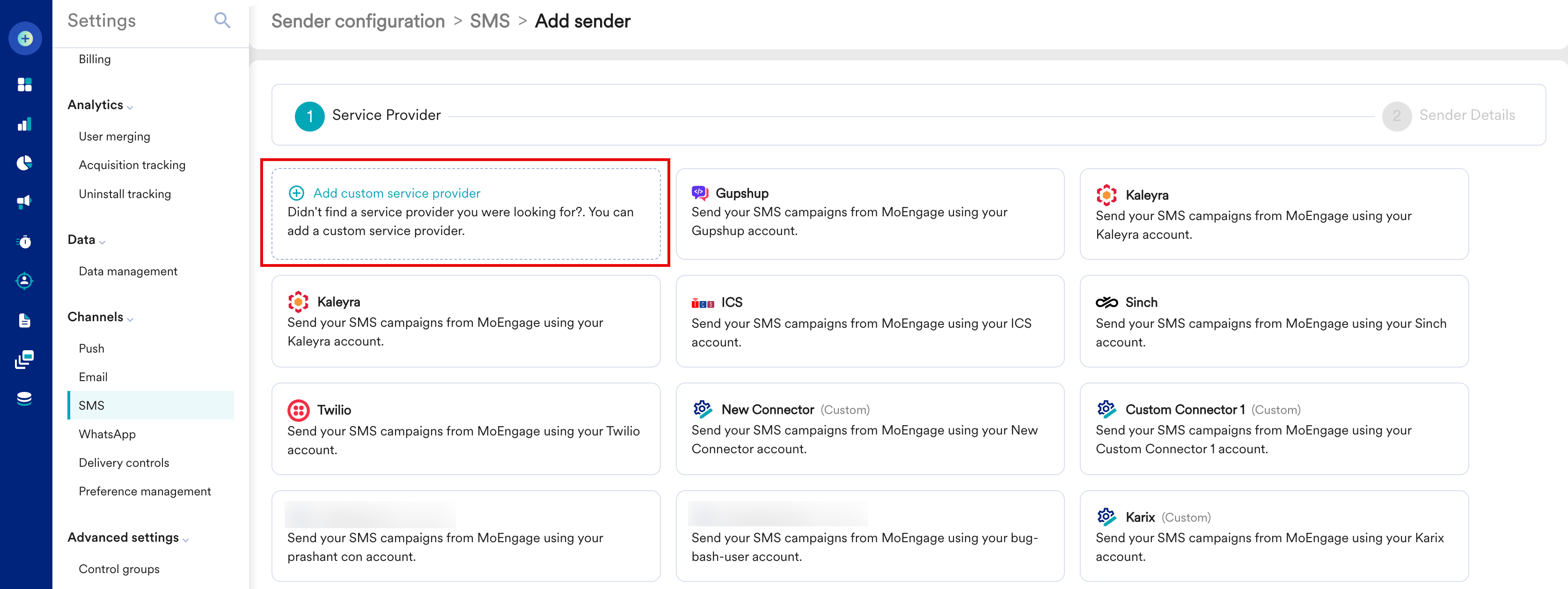

Click Add custom service provider.
Add the following details in the Sender Details screen:

Field	Description
Sender Type	Select Sender Type - Promotional/Transactional based on SMS account at telSpiel.
Connector Name	Enter the Connector Name for the SMS Connector to uniquely identify it. Example: “telSpiel”
Sender Name	Enter Sender Name (DLT Approved Header)
API URL	Select the GET or POST option depending on which HTTP Endpoint you have from telSpiel. Now Enter the telSpiel SMS Push Endpoint (GET/POST) with respective credentials/details: GET API: Endpoint for Single API request: `https://api.telsp.in/pushapi/sendmsg?username=xxxxxx&dest=xxxxxxx&apikey=xxxxx&signature=SENDERID&msgtype=TypeofMessage&msgtxt=template&entityid=entityIdvalue&templateid=templateIDvalue&custref=uniquereferenceid&hashId=dltChainvalue` Endpoint for Multiple API request: `https://api.telsp.in/pushapi/sendbulkmsg?username=xxxxxx&dest=xxxxxxx,xxxxxxx&apikey=xxxxx&signature=SENDERID&msgtype=TypeofMessage&msgtxt=template&entityid=entityIdvalue&templateid=templateIDvalue&custref=uniquereferenceid&hashId=dltChainvalue` Key-value pair: Enter your keys and values. POST API: Endpoint for Single API request: `https://api.telsp.in/pushapi/json/sendmsg` Endpoint for Multiple API request: `https://api.telsp.in/pushapi/json/sendBulkMsg` Enter the JSON payload structure supported by the POST Endpoint.
Parameter Details	Key value pair / Json Parameter details: `username=<******>` [telSpiel api username] `dest= Moesms_message` [Mobile no. on which SMS to be sent] `apikey= User account Authentication key` provided by telSpiel `signature=DLT approved Header/Sender` `msgtype=Type of message` (PM for plain text or UC for Unicode message/multilingual message) `msgtxt= Moesms_destination` [DLT approved message text] `entityid=DLT Entity ID Value` `templateid=Template ID Value` [DLT template id against approved template] `custref=Reference unique ID` (optional) `hashId=Dlt chain Value` (optional)
Headers	For POST Endpoint, please enter below key-value pairs: Key: `Content-Type` \| Value: `application/json` Key: `Accept` \| Value: `application/json`
Delivery tracking	For Delivery tracking, after saving the “Custom Connector” edit it. Now select the option “Map fields manually” and do the below mapping: Unique sent ID field: `uuid` Unique delivery ID field : `uuid` Delivery status field : `status` Success values for delivery status : `DELIVERY_SUCCESS` Failure reason field : `description` Please share SMS delivery tracking URL with telSpiel for configuration.

Body Type (Only for POST), select “Raw” and enter the entire JSON payload structure:

For Single request:

{
  "username":"xxxxxx",
  "apikey":"xxxxxxxxxxx",
  "msgtype":"TypeofMessage",
  "msgtext":"Template",
  "signature":"SenderID",
  "entity":"EntityIDValue",
  "templateid":"TemplateIDValue",
  "tag":"CampaignNameGivenByUser”,     //OPTIONAL
  "custref":"Uniquereferenceid”,       //OPTIONAL
  "hashId":"DltChainvalue",          //OPTIONAL
  "dest": ["xxxxxxxxx"]
}

For Multiple request:

{
  "username":"xxxxxx",
  "apikey":"xxxxxxxxx",
  "entity": "xxxxxxxx",
  "msgtype": ["xx","xx"],
  "signature": ["xxxxx","xxxxx"],
  "msgtext": ["Template1","Template2"],
  "templateid": ["TemplateIdValue1","TemplateIdValue2"],
  "tag": "CampaignNameGivenByUser",       //OPTIONAL
  "hashId":"DltChainvalue",              //OPTIONAL
  "custref":"Uniquereferenceid",       //OPTIONAL
  "dest": ["xxxxxxxx","xxxxxxxxx"]
}

Click Save.

Troubleshooting

If any issue occurs while sending a test message or saving the configuration, follow the steps below:

Ensure that the telSpiel Endpoint and respective parameters/JSON structure are added correctly, as they are case-sensitive.
If the issue persists, raise a Support Request to MoEngage to get your error code.
Connect with the telSpiel support team to get the issue resolved after you receive the error code from the MoEngage Support team. Support Email: [email protected].
