All steps in this guide are performed in Xcode, open your iOS project by launching ios/Runner.xcworkspace in Xcode before proceeding. To migrate from an existing manual implementation to the integrator tool, follow the below steps:

​
Step 1: Prerequisites

Before proceeding, ensure the following are in place:
  • Ensure you are using MoEngage Flutter SDK version 10.6.0 or above to utilize the extension integrator tool.
  • SDK initialization: Initialize the MoEngage SDK using file-based initialization.
    • App Group configuration: Provide the AppGroupName key (for example, group.com.organization.app) you are using with your sdkConfig.appGroupID.

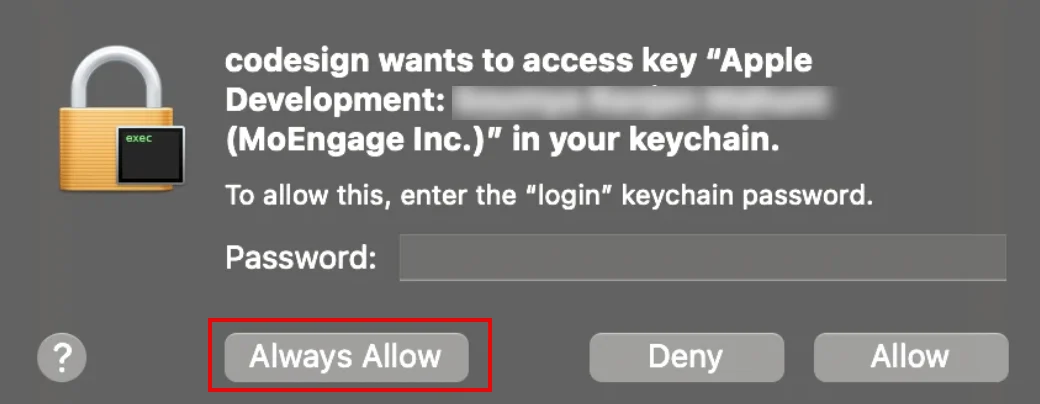

  • After integration is complete, you may be prompted to access the keychain for code signing. Click Always Allow.
    Keychain

​
Step 2: Integrate MoEngageRichNotification

Integrate MoEngageRichNotification if you need to support either of the following push notification features:
  • Rich media — display images, GIFs, or video in the notification banner
  • Rich push templates — render interactive notification layouts such as carousel
This step is mandatory if you have integrated the content extension.
To install the MoEngageRichNotification through SPM, perform the following steps:
  1. Navigate to File > Add Package.
  2. Enter the repository URL:
    • https://github.com/moengage/apple-sdk.git
  3. Select the master branch or a specific version and select Add Package.
  4. Target the package to your application.

​
Step 3: Integrate the extension integrator tool

Automate the extension configuration by adding a custom script to your build process.

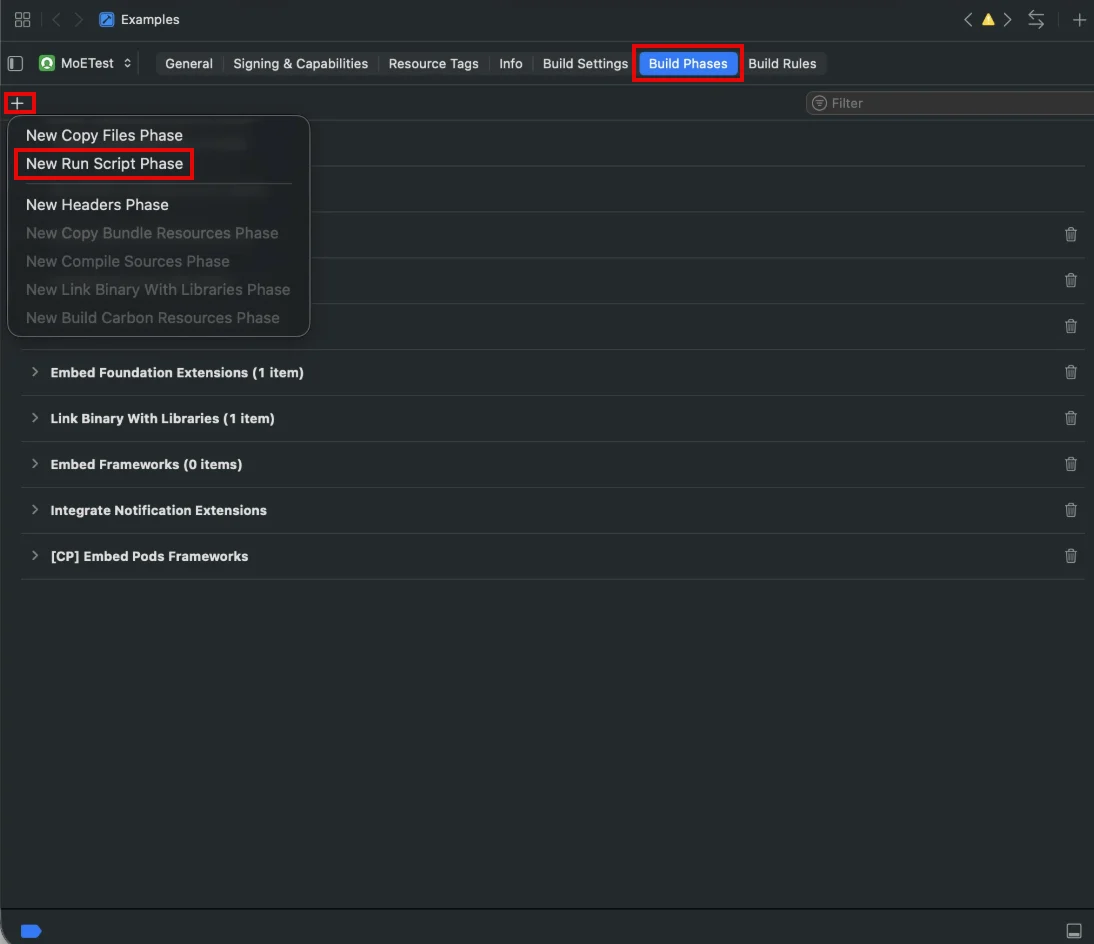

  1. In Xcode, select your application target, go to Build Phases, and click + to add a New Run Script Phase.
Newrunscriptphase
If you have already added a script phase and configured the input files, you can simply update the run command as described in step 3 below.

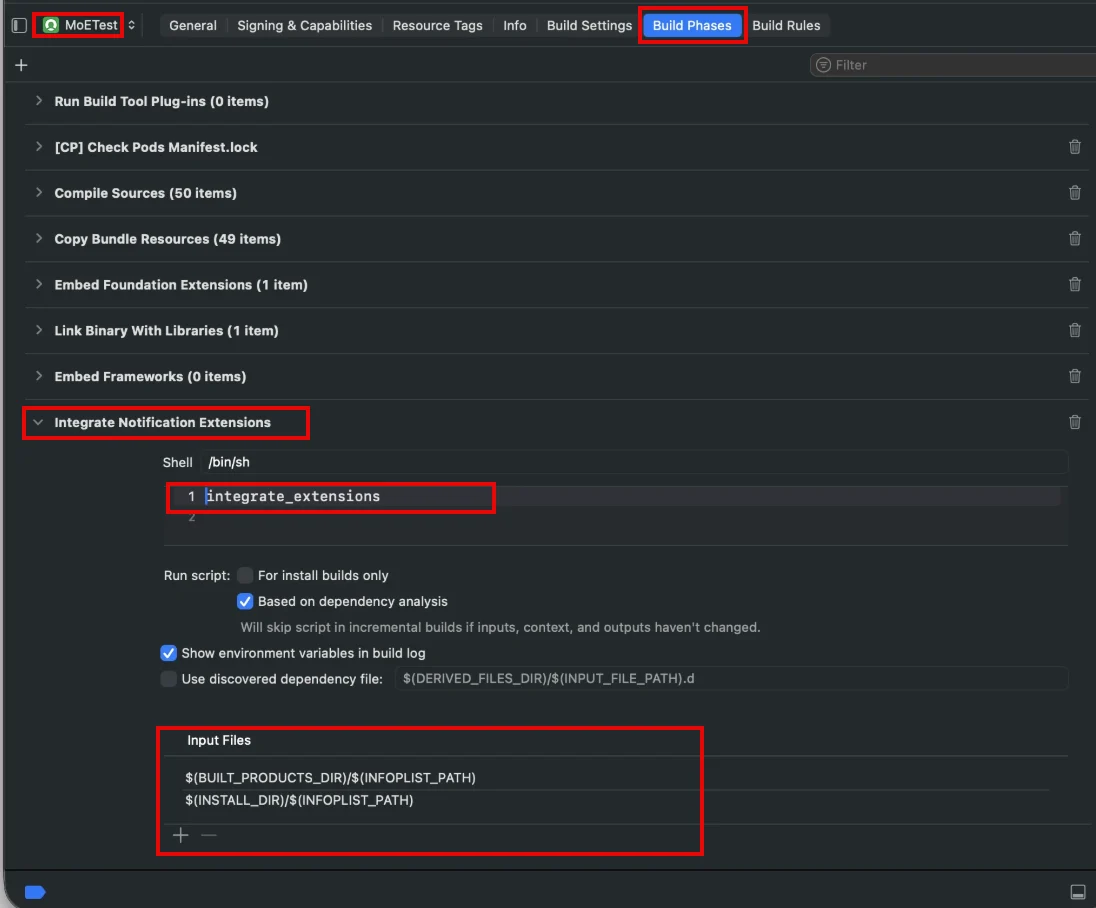

  1. Add the following paths to the Input Files section:
  • $(BUILT_PRODUCTS_DIR)/$(INFOPLIST_PATH)
  • $(INSTALL_DIR)/$(INFOPLIST_PATH)
Path 1
  1. In the shell script input box of the Run Script Phase added in step 1, enter the command relevant to your dependency manager, replacing $OPTIONS with your desired configuration:
Swift Package Manager (SPM)
${OBJROOT}/../../SourcePackages/artifacts/apple-sdk/moengage-extensions-integration/moengage-extensions-integration.artifactbundle/moengage-extensions-integration/bin/moengage-extensions-integration $OPTIONS

​
Available options

Replace $OPTIONS with one or more of the following:
OptionDescription
--enable-push-notification-templatesRequired if the content extension from Step 2 is used.
--notification-service-extension-name $CUSTOM_SERVICE_EXTENSION_NAMESets a custom name for the service extension. Use this when migrating to this tool from a custom service extension implementation. (Default: MoEngageNotificationService).
--notification-content-extension-name $CUSTOM_CONTENT_EXTENSION_NAMESets a custom name for the content extension. Use this when migrating to this tool from a custom content extension implementation. (Default: MoEngageNotificationContent).

​
Step 3: Remove existing extensions

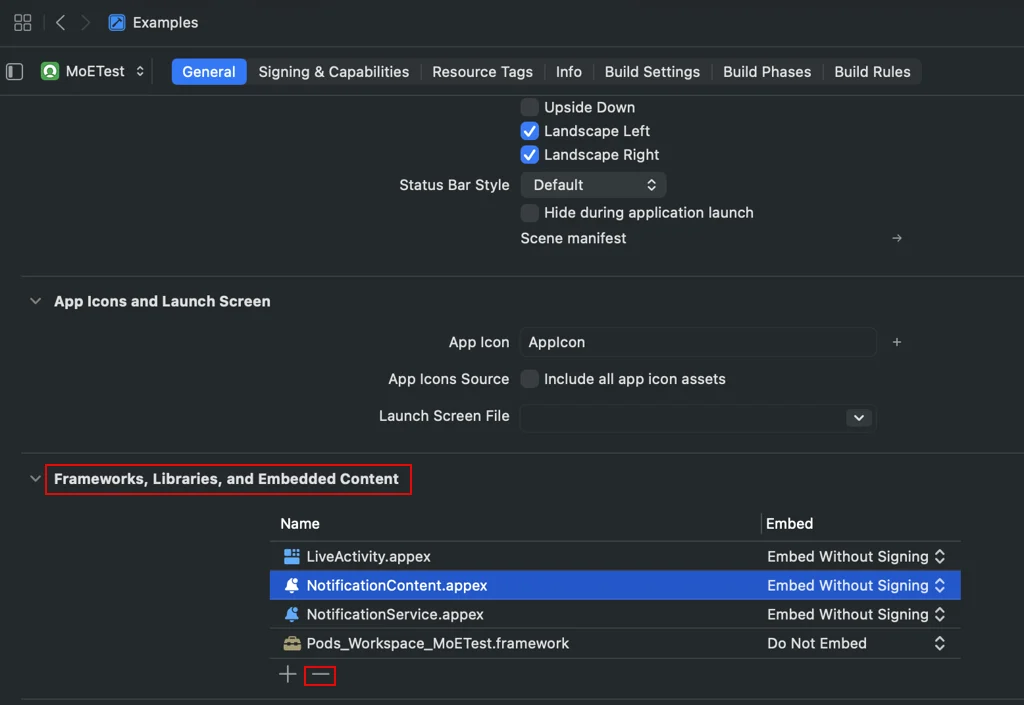

Remove existing service and content extensions added in Frameworks, Libraries and Embedded Content section.
Removeexistingextensions
Failing to remove prevents push delivery impressions and rich push notifications.
