The following are the contents of the files for the messages archived.
Channel and PlatformFile Contents (S3)File Contents (SFTP)
Email
  • Main content (HTML)
  • From email address
  • Sender name
  • Subject
  • Reply-to email address
  • Date and time of email delivery
  • User details (To email address)
  • Main content (HTML)
  • From email address
  • Sender name
  • Subject
  • Reply-to email address
  • Date and time of email delivery
  • User details (User ID and To email address)
  • Campaign Info (ID, name, type, app key)
  • Workspace Name
  • Delivery Type
SMS
  • Main content
  • User details (mobile number)
  • Channel
  • Connector info
  • Short code or service ID
  • Template type
  • Delivery time
  • Tracked URLs
  • Main content
  • User details (User ID and mobile number)
  • Channel
  • Connector info
  • Short code or service ID
  • Template type
  • Delivery time
  • Tracked URLs
  • Campaign Info (ID, name, type, app key)
  • Workspace Name
Push - Android (This is not a preview, but only the content. This is because the message may render differently for each device.)
  • Main content
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details
  • User details (Push token)
  • Channel
  • Platform
  • Main content (summary, title, message, URLs)
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details (ID, name, type, app key, Workspace name)
  • User details (User ID and Push token)
  • Channel
  • Platform
  • Delivery type and time
Push - iOS (This is not a preview, but only the content. This is because the message may render differently for each device.)
  • Main content
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details
  • User details (Push token)
  • Channel
  • Platform
  • Main content (summary, title, message, URLs)
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details (ID, name, type, app key, Workspace name)
  • User details (User ID and Push token)
  • Channel
  • Platform
  • Delivery type and time
Push - Web (This is not a preview, but only the content. This is because the message may render differently for each device.)
  • Main content
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details
  • User details (Push token)
  • Channel
  • Platform
  • Main content (summary, title, message, URLs)
  • Backup content (wherever backup is supported, except for basic templates)
  • Campaign details (ID, name, type, app key, Workspace name)
  • User details (User ID and Push token)
  • Channel
  • Platform
  • Delivery type and time

​
Example of Message Content

​
Structure of a Single Message Object

The following are examples of the file content for a single message archived via SFTP and S3:
{
 "message_content": {
 "summary": "{message_summary}",
 "related_urls": ["{image_or_deep_link_url}"],
 "title": "🎉 MarketingCampaigner Implemented!!",
 "message": "Sample push notification message"
      },
 "backup_content": {
 "summary": "{message_summary}",
 "related_urls": ["{image_or_deep_link_url}"],
 "message": "{message_body_content}",
 "title": "{message_title}",
 "message_details": {
 "sent_time": "Tue, 21 Jan 2025 09:54:59 EST",
  "template_info": {
      "id": "basic",
      "type": "Native"
      },
 "delivery_type": "API_TRIGGERED",
  "service": {
       "type": "APNs"
      },
 "channel": "push",
 "message_type": "campaign",
 "message_id": "{{message_id}}",
 "message_to": "",
 "platform": "ios"
      }
      }

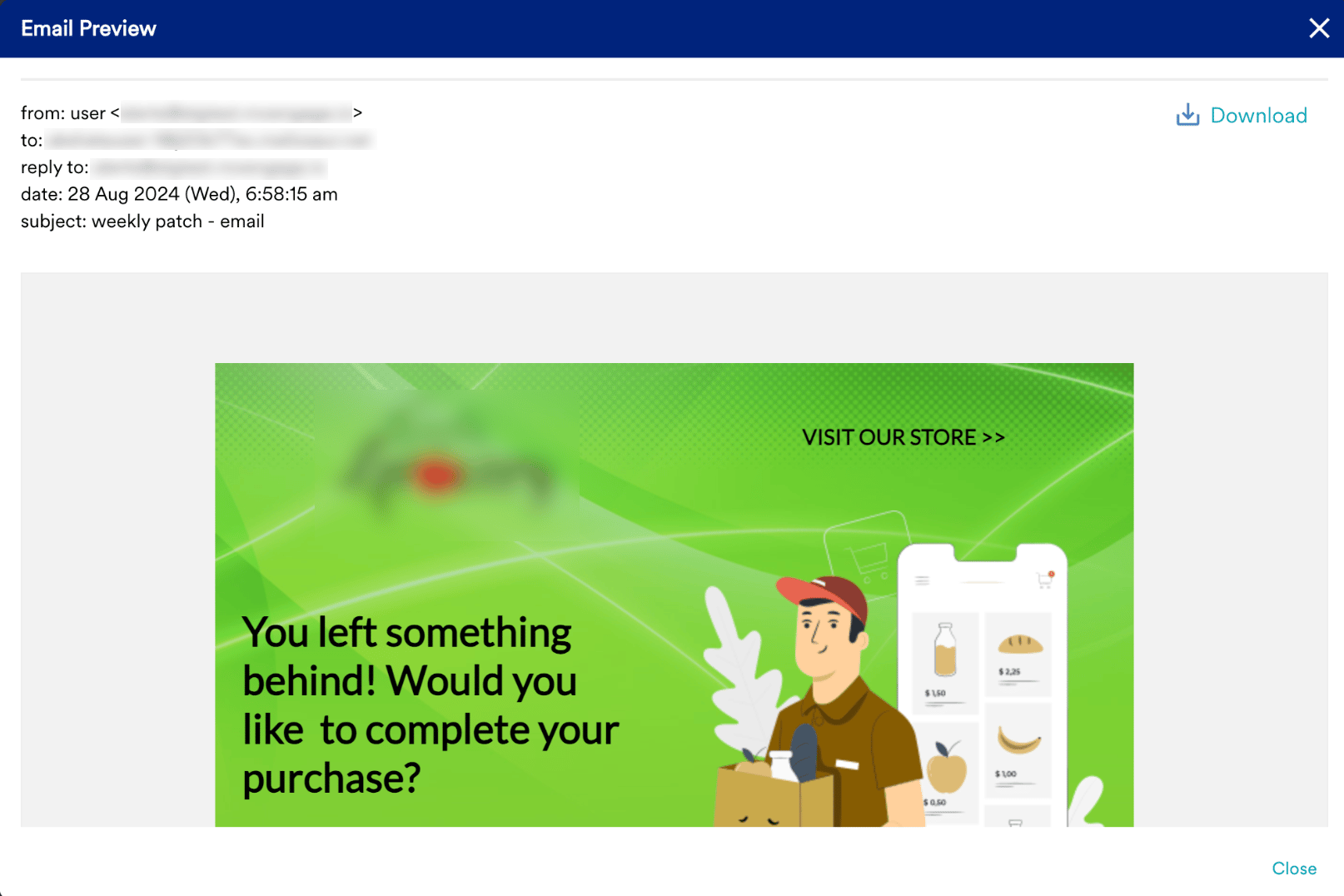

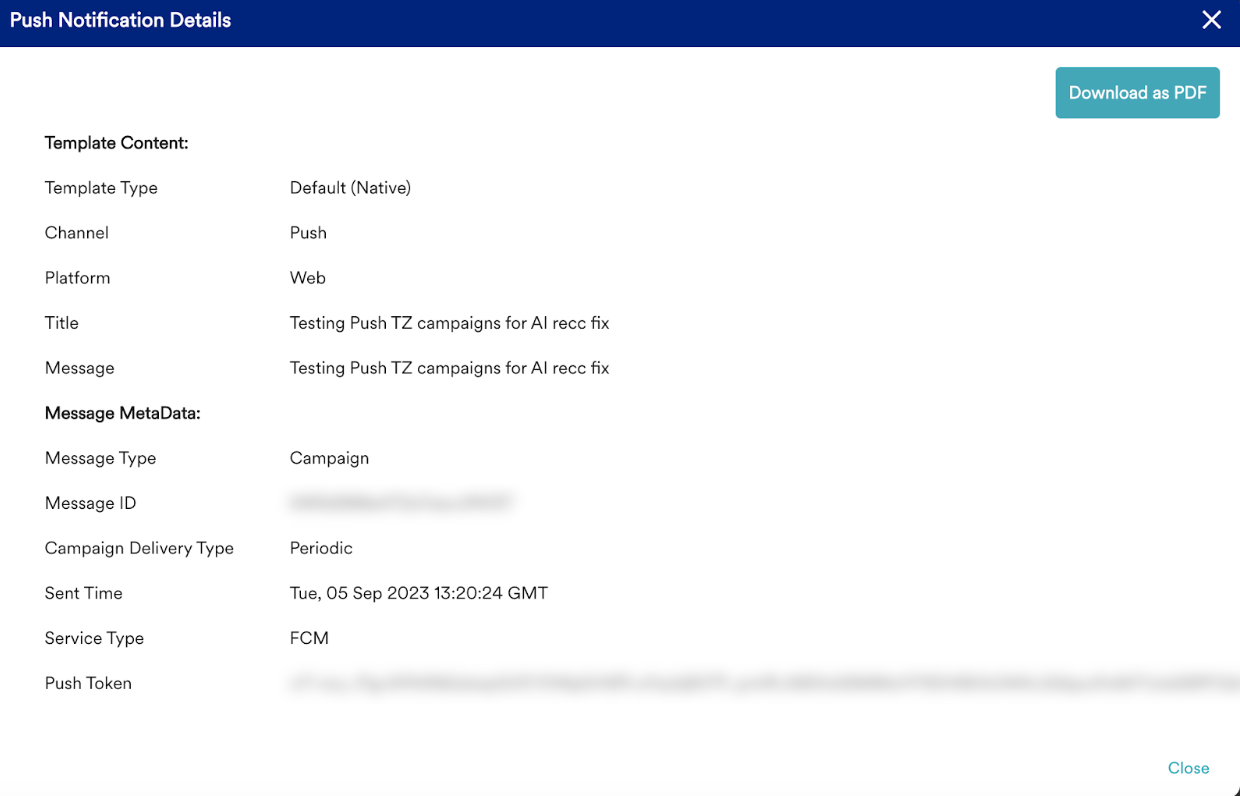

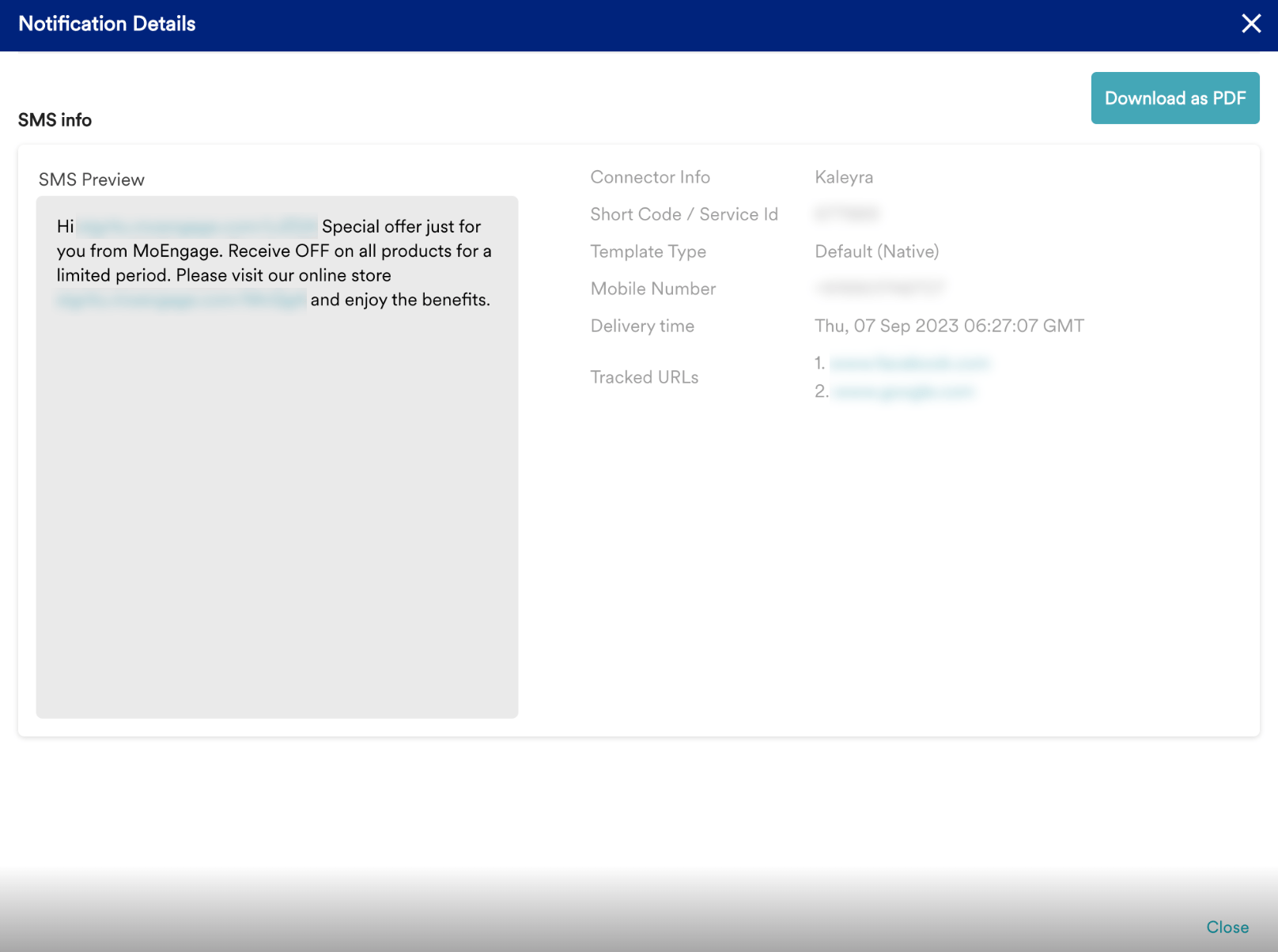

The following images are some examples of file contents archived via the S3 archival method:
  • The View Sent Message feature is not available for the SFTP method in the UI.
  • In case of non personalized message, SFTP message archival will have only one copy in the message content and MoEngage appends “user_ids” of all the user receiving the message.
