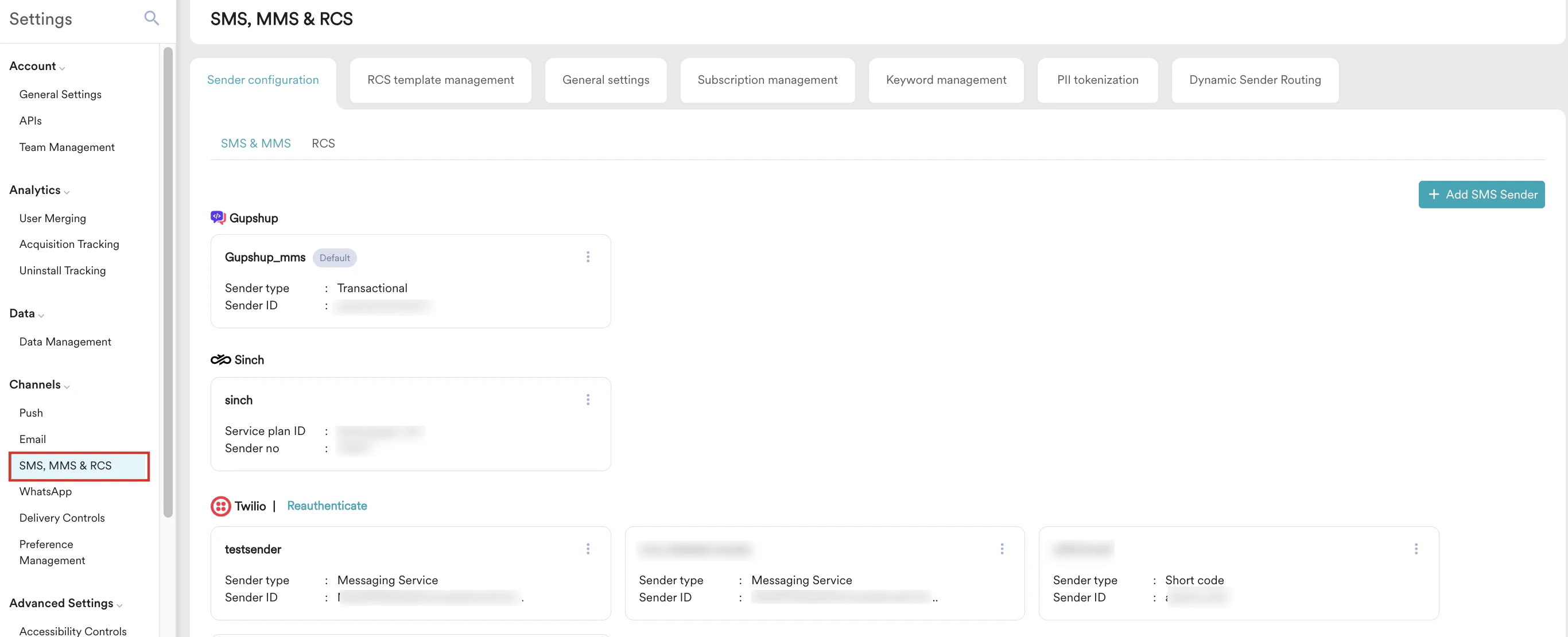

Configuring an SMS sender is important because it’s the authorized entity that MoEngage uses to transmit messages, making it a mandatory prerequisite for running any RCS campaigns. You have to configure senders for integrated or custom connectors(service providers). By having separate threads, you can configure multiple senders for an SMS service provider and streamline your SMS communications for different brands or types. Moreover, you can choose different senders for different SMS campaigns during the creation of SMS campaigns. SMS senders can be added and managed in the Sender configuration tab of SMS, MMS & RCS settings. You can access the Sender configuration tab using this path: Settings > Channels > SMS, MMS & RCS > Sender configuration. CONFIGURE sms.png
You can set up the mobile number format so that MoEngage can submit mobile numbers to SMS connectors in E.164 format, that is, +countrycodemobilenumber. For more information, refer to Mobile Number Standardization.

Configure Your Sender

Perform the following steps to add an SMS sender:

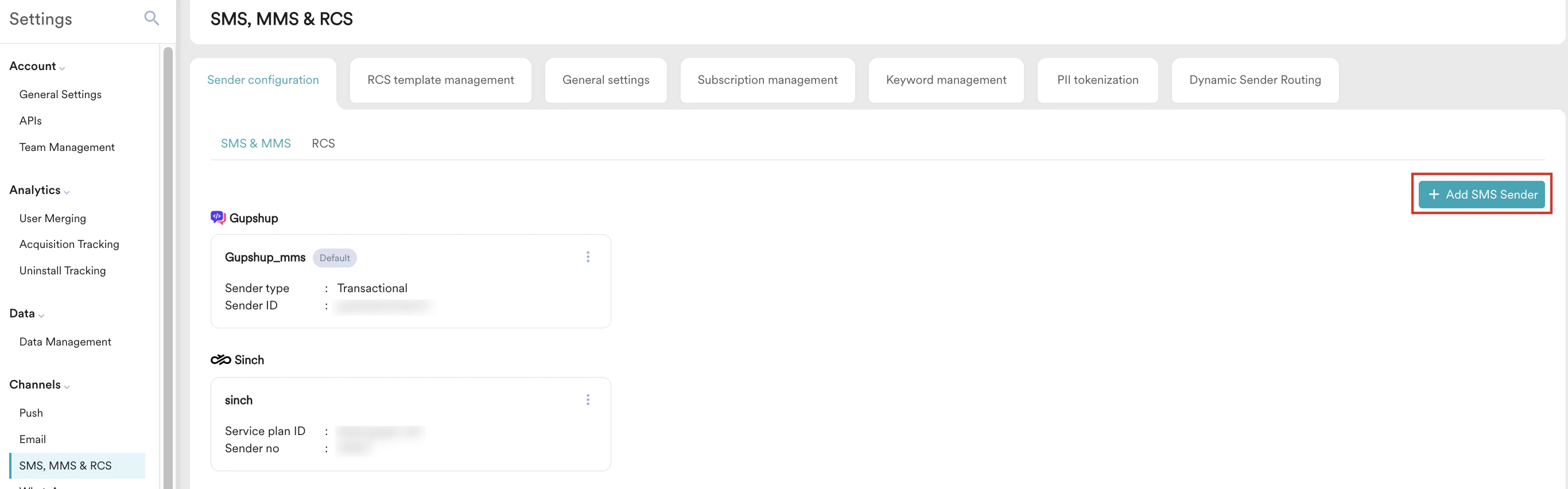

  1. On the SMS & MMS tab, click Add SMS Sender. The Add sender page is displayed. CONFIGURE sms 2.png

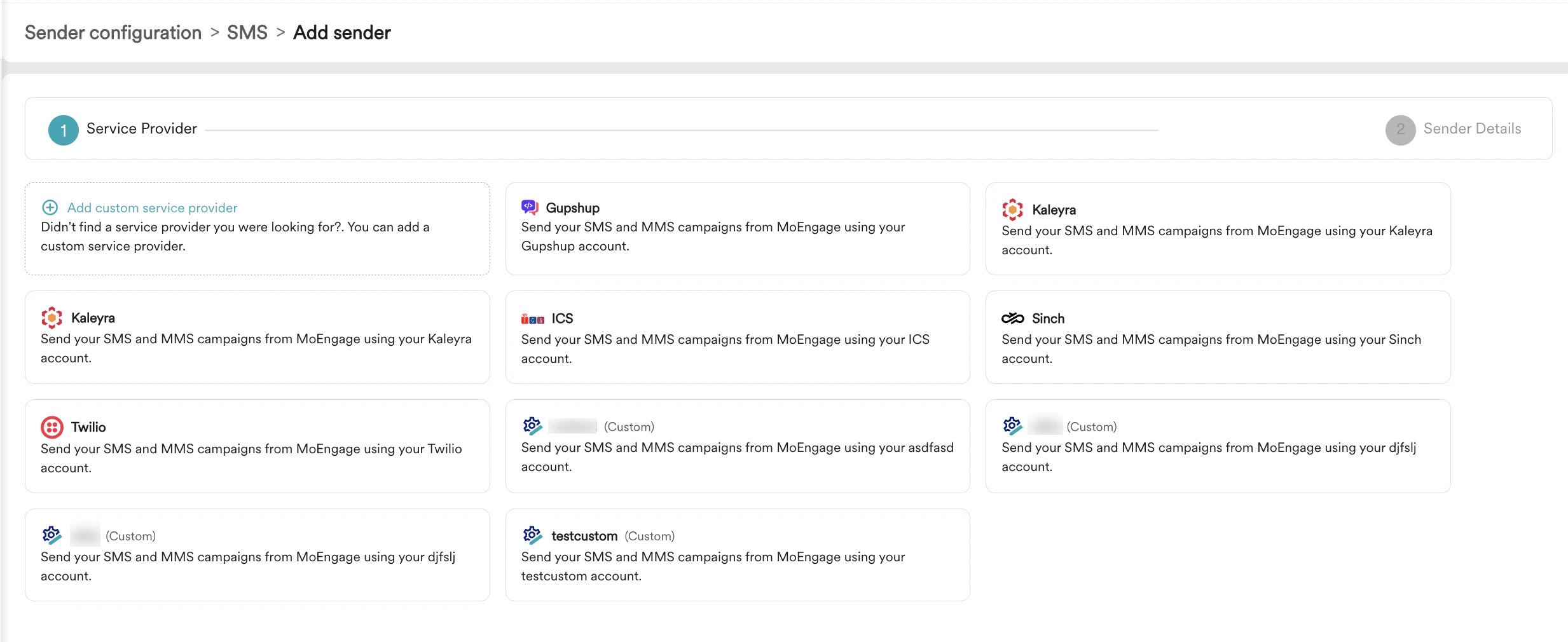

  2. In step 1, Service Provider, select your service provider. You can choose from integrated service providers or add a custom service provider. For more information about adding custom service providers, refer to Configure a Custom Service Provider. Screenshot 2025-09-16 at 6.10.59 PM.png
  3. In step 2, Sender Details, add the sender details of the selected sender. The following are some of the common sender detail fields for integrated service providers: Note that depending on the sender being configured, the fields in the UI vary. For example, some senders may require a username and password, while others may require API endpoint URLs. For more information, refer to SMS Providers for vendor-specific configuration details.
  4. Copy the Delivery tracking URL available on the dashboard and paste it into the callback webhook settings of your service provider.
  5. Click Send a test SMS to test your configuration.
  6. Click Save.
  7. After adding the sender, it will be displayed under the Sender configuration > SMS & MMS tab.

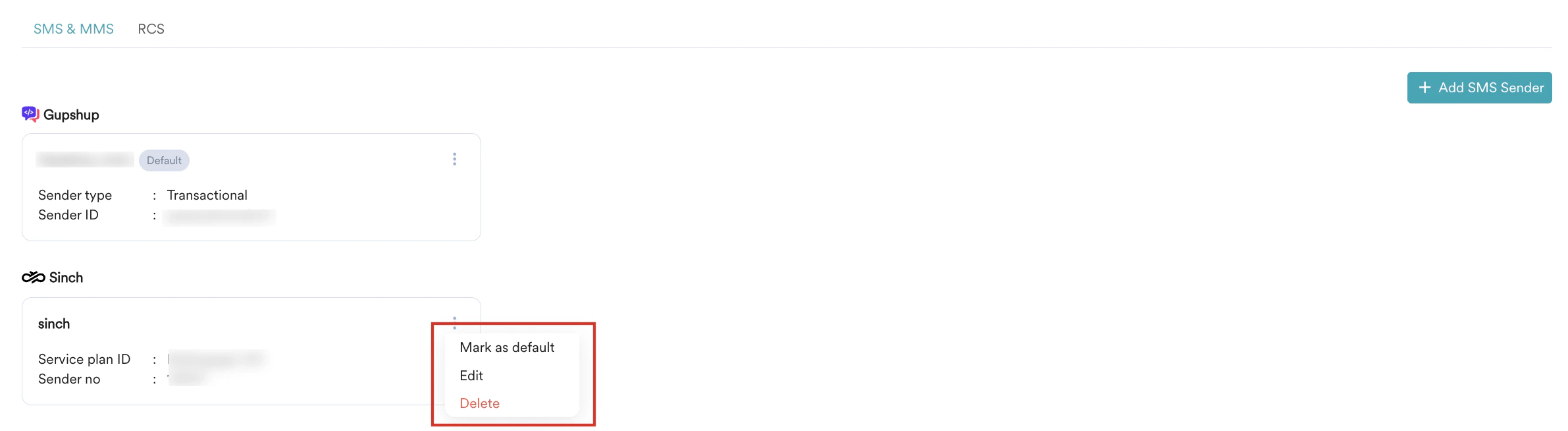

  8. Click the ellipsis icon ( ) to Mark as default, Edit, or Delete the sender. Screenshot 2025-09-17 at 11.26.34 AM.png
    • When a sender is marked as default, this sender is used to send all SMS campaigns, unless a different sender is selected at the campaign level.
    • When you delete a sender, any active campaigns associated with this sender will be send using the default sender. Note that you cannot delete a default sender. To delete a default sender, mark another sender as the default first. This will enable the delete option for the sender you want to delete. You can now proceed to delete the sender.
  • In the Sender ID field, ensure that you add the Header ID approved under the DLT platform. More details on DLT are captured here.
  • If you try to send an SMS via an unapproved header, your SMS is rejected and is not delivered to the users.

Dynamic Sender Routing

This feature is applicable only for Inform alerts.
Dynamic Sender Routing allows you to define custom rules that dynamically assign senders for your SMS alerts. By defining custom routing rules based on user properties or API attributes, you can:
  • Optimize your messaging for better deliverability.
  • Manage sending costs.
  • Ensure compliance with local regulations.
For more information, refer to Dynamic Sender Routing.

Whitelist IPs

MoEngage uses dynamic IPs to send messages. If your SMS provider requires static IPs, ask your admin or IT team to whitelist the MoEngage IPs. To enable static IPs for SMS, contact your Customer Success Manager (CSM) or the Support team and request Send via Static IPs for SMS. For the IP list, refer to IP Whitelisting in MoEngage. This is an optional step.

Next Steps

  1. Configure SMS General Settings
  2. Configure FC Settings
  3. Configure DND Settings
  4. Configure Subscription Categories
